Loading Block — Colour-Coded Stackable Reloading Tray
Price:
$25.00
- Designed and made in Australia
- 4 size options
- Stackable system
-
Free shipping over $150
Standard shipping Australia-wide on orders over $150. Tracking included. We also ship to New Zealand.
-
Printed to order in North Queensland
Made for your order and dispatched in 1–2 business days.
-
30-day returns
Faulty or damaged items replaced free. If a tray doesn't fit as specced, we'll make it right.
Product details
Know the bore by the colour. Every time.
The Forward Point Colour-Coded Loading Block is the same precision 3D-printed reloading tray as our standard block, with one difference that matters on a busy bench: each bore size has its own dedicated colour. Reach into the cupboard, see green, and you already know it is the 16 mm block — no squinting at pockets, no test-fitting a case.

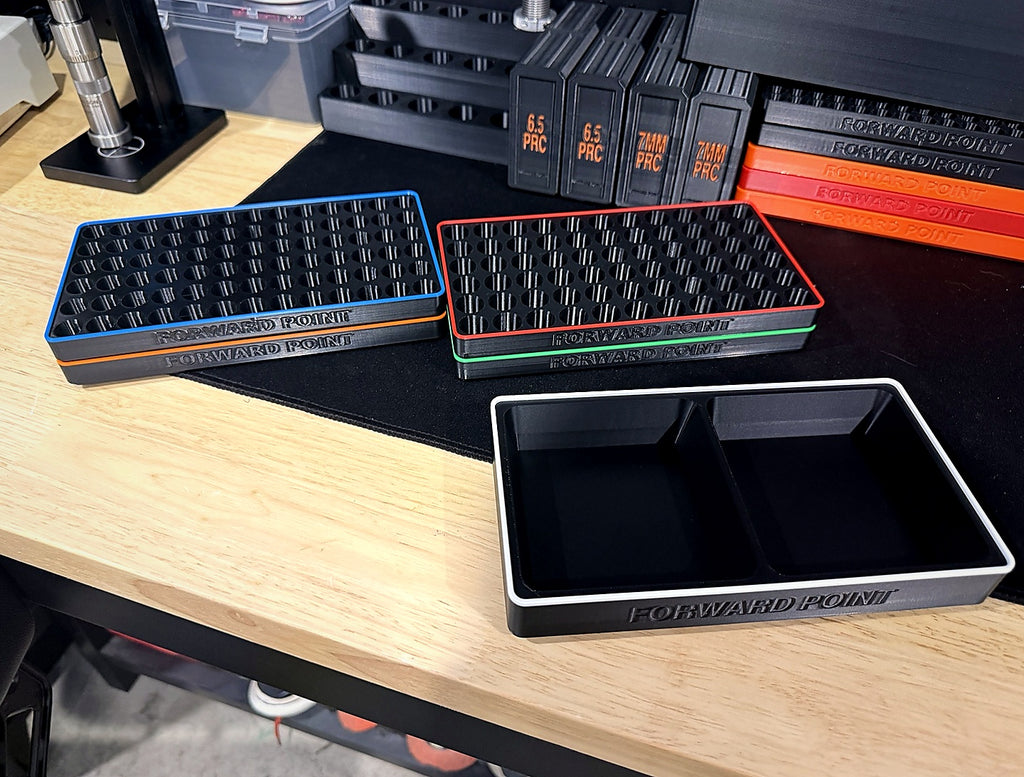

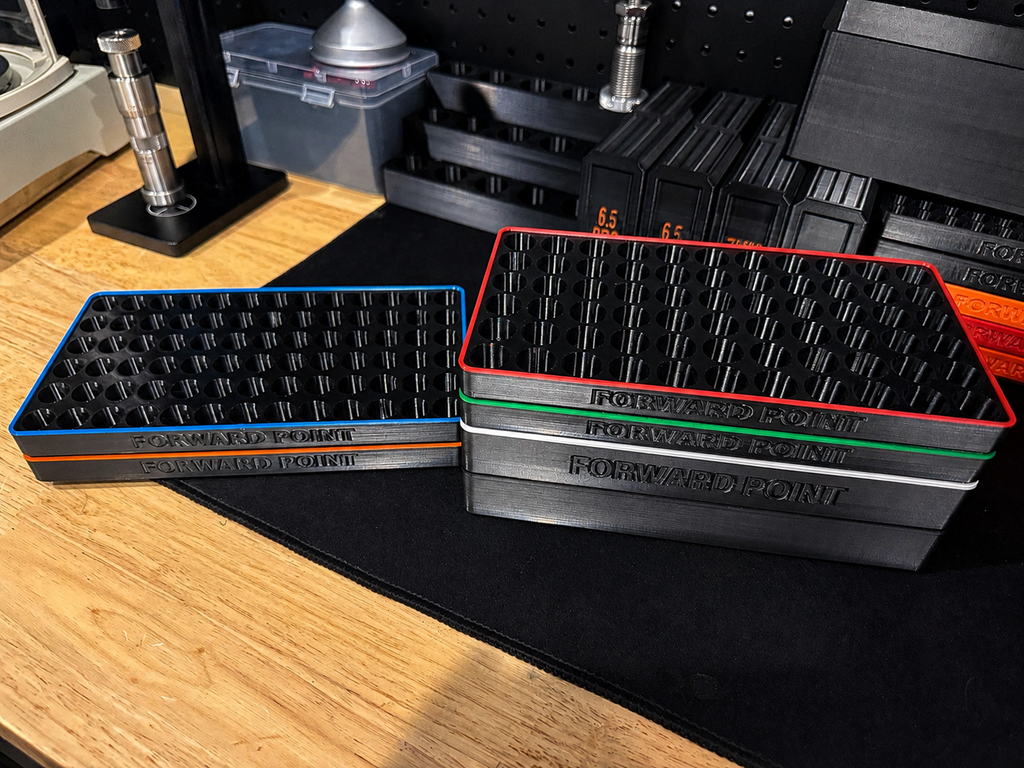

Every block shares an identical 210 × 115 mm footprint and stacking interface, so the four sizes stack squarely on top of one another. Charged cases stay upright and visible in a 13 mm straight bore, so you can read powder levels straight down the row and spot a double charge or a missed charge at a glance.
Spec sheet
Specifications and compatibility
The Colour Code
| Colour | Size | Capacity | Typical Calibres |
|---|---|---|---|
| Orange | 10 mm (Ø10.6) | 120 pockets | .17 Rem, .204 Ruger, .222 Rem, .223 Rem / 5.56 |
| Blue | 12 mm (Ø12.6) | 78 pockets | .22-250, .243 Win, 6mm & 6.5 Creedmoor, 6.5 Grendel, .25-06, .260 Rem, .270 Win, 7mm-08, .280 Rem, .308 Win / 7.62, .30-06, 7.62×39 |
| Red | 14 mm (Ø14.6) | 66 pockets | .300 Win Mag, 7mm Rem Mag, .338 Win Mag, .375 H&H, 6.5 PRC, 7mm PRC, .300 PRC, .303 British, .30-30 Win, .44 Rem Mag |
| Green | 16 mm (Ø16.6) | 50 pockets | .45-70 Govt, .338 Lapua Mag, .416 Rigby, .50 Beowulf |
Loading blocks are sized on case head or rim diameter, not on bullet calibre. Measure the base of your case and choose the next size up.
Specification
| Attribute | Detail |
|---|---|
| Footprint | 210 × 115 × 18.2 mm — identical across all four bore sizes |
| Capacity | 120 pockets (orange) / 78 (blue) / 66 (red) / 50 (green) |
| Bore Depth | 13.0 mm straight bore with a 2.0 mm chamfered lead-in — cases drop in one-handed |
| Stacking | Recessed rim and matching underside relief — blocks locate positively and will not slide |
| Construction | Precision 3D-printed, solvent and oil resistant, branded on the long face |
| Origin | Designed and manufactured in Australia |
Prefer to choose your own colour? The standard Loading Block is available in six solid colours across all four bore sizes.
Not sure which size suits your calibre? Email forwardpointindustries@gmail.com with your cartridge and we'll confirm the right bore.
Important Information
- Do not leave the product inside vehicles or environments where temperatures may exceed 60°C.
- Finished fit may vary slightly due to printing tolerances and case manufacturer variation.
- Cases, ammunition and components shown in photographs are for display only and are not included.
- Wipe clean with a dry cloth. Avoid prolonged soaking in aggressive solvents.
Manufactured in Australia · Built for performance. Made to last. · Forward. Always.
Check your calibre before you order.
Match your cartridge to the right tray family, bore size and insert in the compatibility guide.
