Universal Tray Insert System
Price:
$49.00
Ammunition Case
Complete Case — Universal Tray Insert + Tactix Hard Case
Price:
$90.00
- Designed and made in Australia
- 10 tray type options
-
Free shipping over $150
Standard shipping Australia-wide on orders over $150. Tracking included. We also ship to New Zealand.
-
Printed to order in North Queensland
Made for your order and dispatched in 1–2 business days.
-
30-day returns
Faulty or damaged items replaced free. If a tray doesn't fit as specced, we'll make it right.
Product details
One case. Ten trays. Ready to deploy.

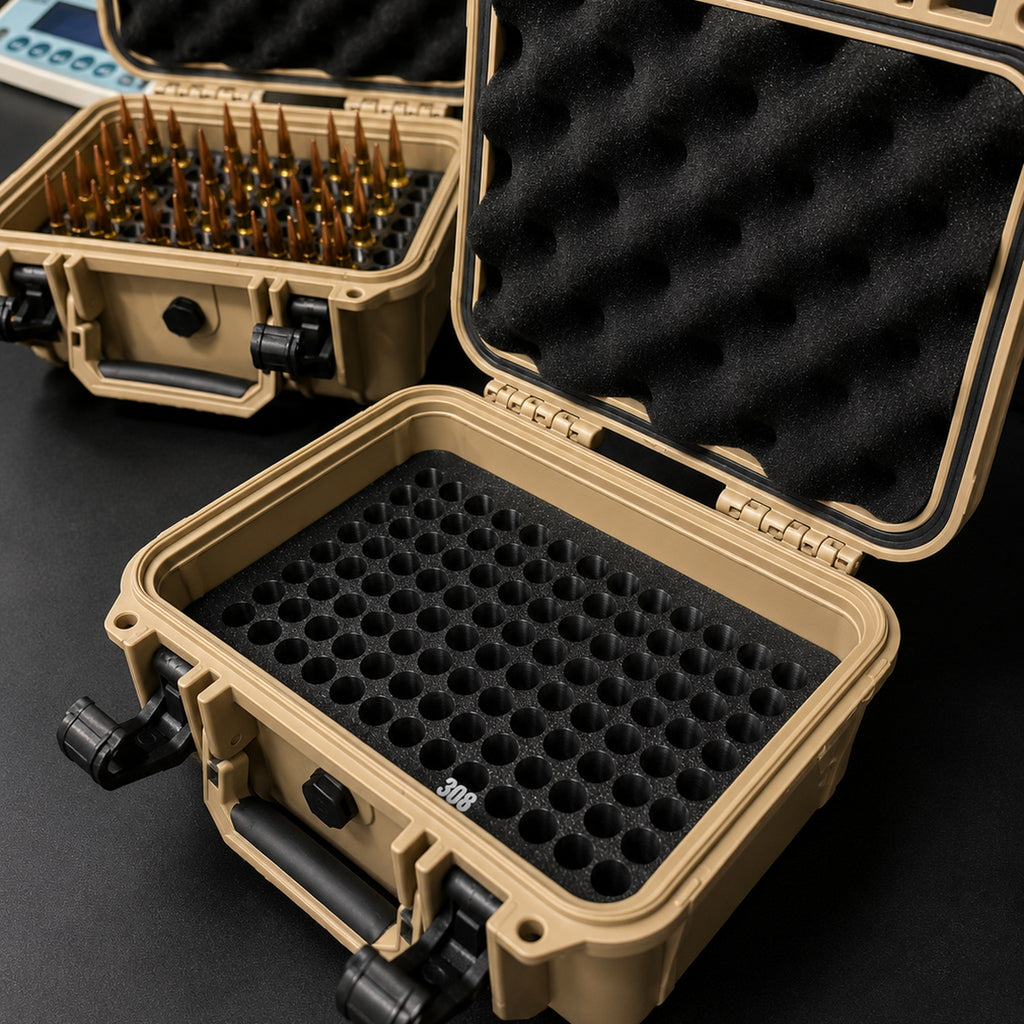

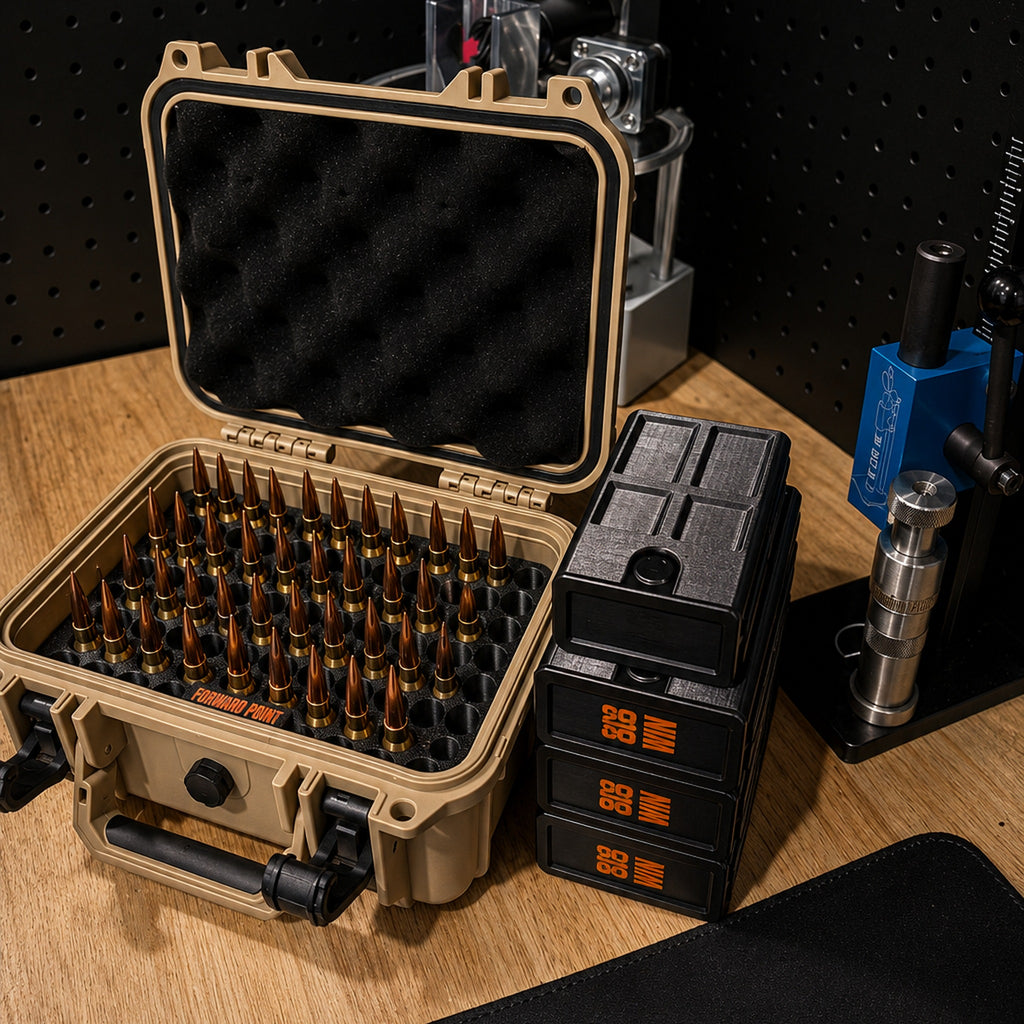

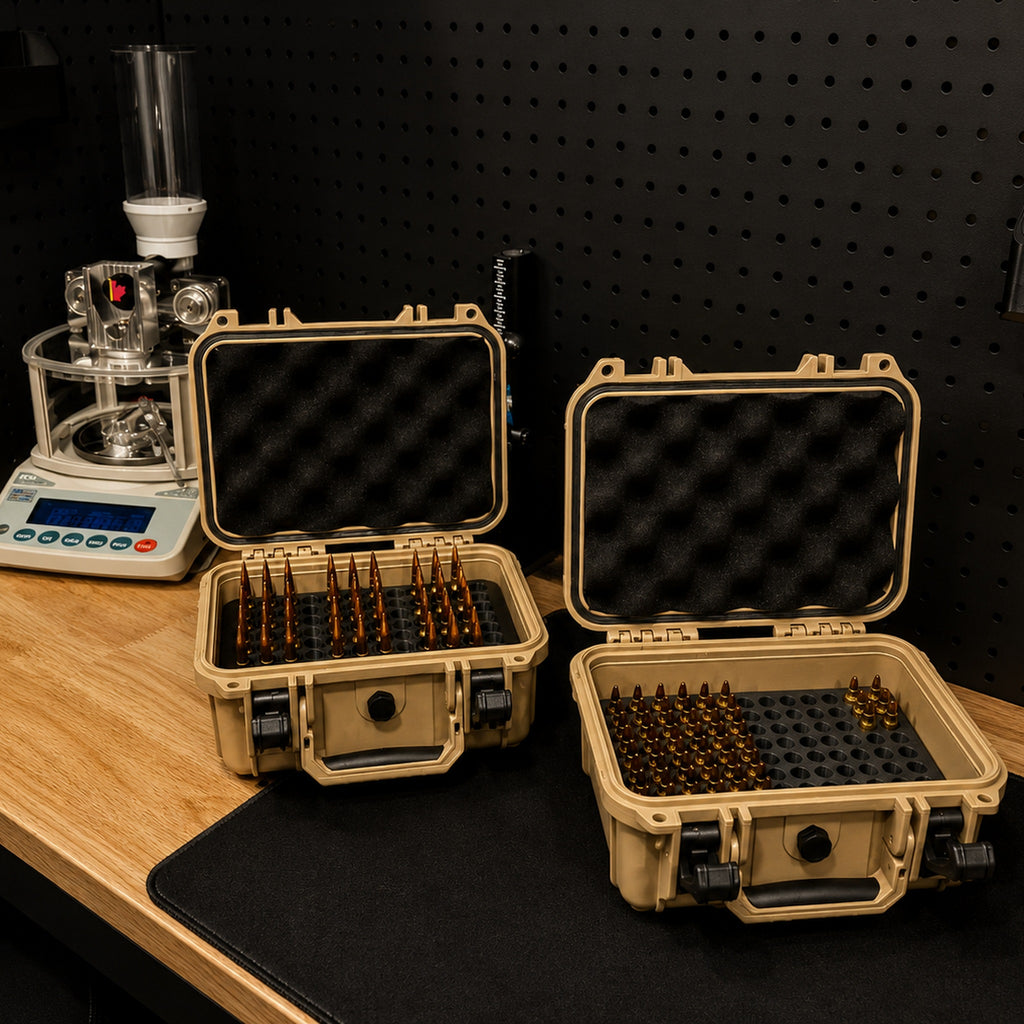

The Complete Case pairs the Forward Point Universal Tray Insert with a rugged Tactix hard case and protective lid foam — a sealed, latched, carry-ready ammunition storage system straight out of the box. Select the tray built around your cartridge family: rifle, lever, handgun, .22 LR or 12 gauge.
Spec sheet
Specifications and compatibility
What's Included
- Forward Point precision 3D-printed universal tray insert (selected tray type)
- Tactix hard outer case with latches and carry handle
- Protective convoluted lid foam

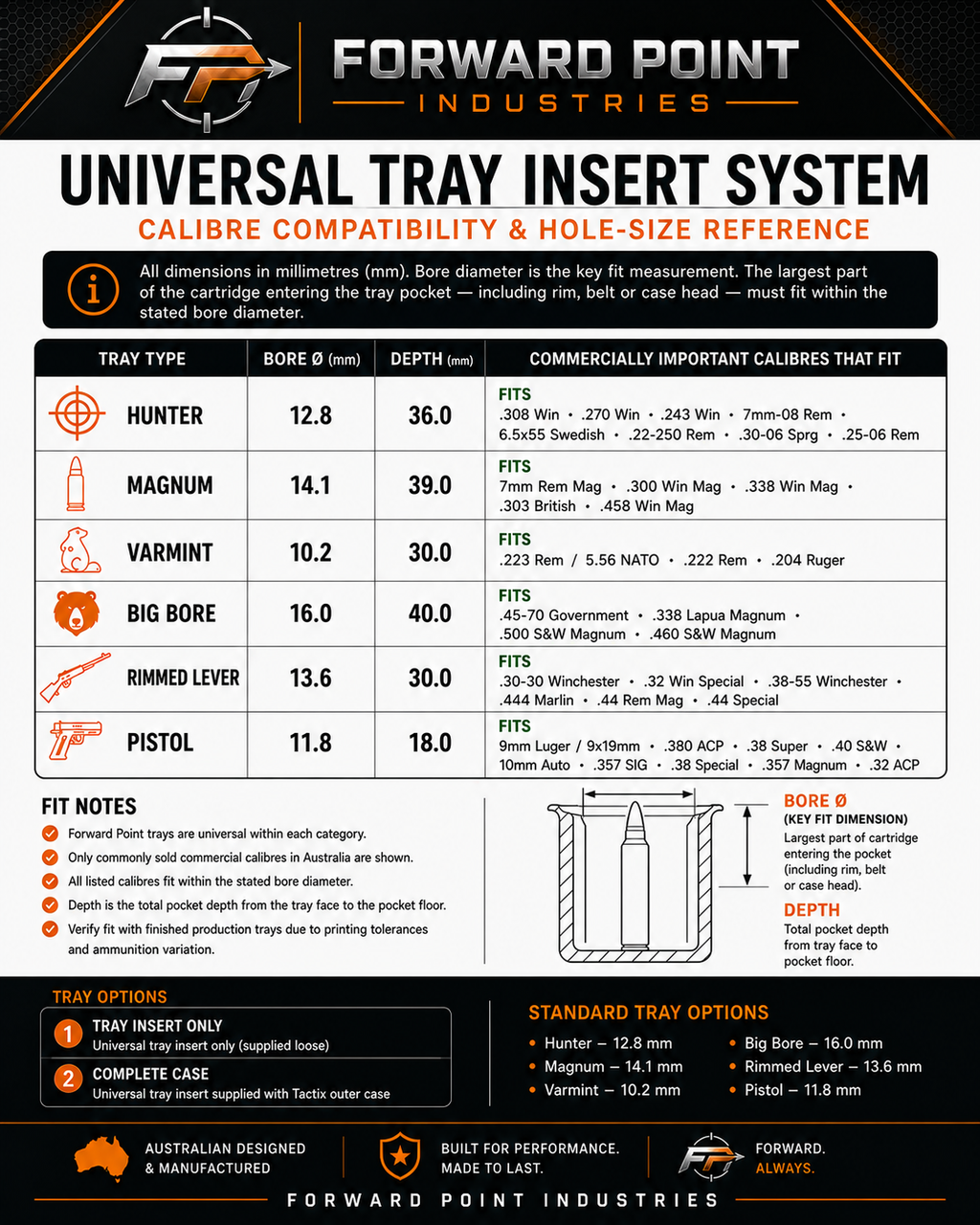

Calibre Compatibility Reference
| Tray Type | Bore Ø | Depth | Rounds | Fits |
|---|---|---|---|---|
| Varmint | 10.20 | 30.0 | 160 | .22 Hornet · .17 Rem Fireball · .204 Ruger · .221 Fireball · .222 Remington · .222 Rem Magnum · .17 Remington · .223 Rem / 5.56 · .300 AAC Blackout |
| Hunter | 12.80 | 36.0 | 104 | .218 Bee · .32-20 Winchester · 6.5 Grendel · 7.62×39 · .35 Remington · 6mm Remington · 8×57 IS · 9.3×62 · .257 Roberts · .22-250 Rem · .220 Swift · .243 Winchester · 6mm Creedmoor · 6.5 Creedmoor · 6.5×47 Lapua · .250 Savage · .25-06 Rem · .260 Remington · .270 Winchester · 7mm-08 Rem · 7×57 Mauser · .280 Remington · .308 Win / 7.62 · .300 Savage · .30-06 Springfield · .338 Federal · .35 Whelen · .450 Bushmaster · 6.5×55 Swedish |
| Magnum | 14.10 | 39.0 | 94 | .454 Casull · .460 S&W Magnum · .50 Beowulf · .450 Marlin · .264 Win Magnum · 7mm Rem Magnum · .300 Win Magnum · .338 Win Magnum · .458 Win Magnum · .350 Rem Magnum · 7mm STW · .300 H&H Magnum · .375 H&H Magnum · .458 Lott · .300 Wby Magnum · .340 Wby Magnum · .270 WSM · 7mm WSM · .300 WSM · .325 WSM · 6.5 PRC · 7mm PRC · .300 PRC · .375 Ruger · .303 British · .405 Winchester |
| Big Bore | 16.00 | 40.0 | 76 | .300 Rem Ultra Mag · .500 S&W Magnum · .43 Mauser · .338 Lapua Magnum · .416 Rigby · .378 Wby Magnum · .460 Wby Magnum · .40-65 Winchester · .45-70 Government · .45-90 Winchester · .45-100 Sharps · .348 Winchester |
| Rimmed Lever | 13.58 | 36.0 | 104 | .38-55 Winchester · .356 Winchester · .307 Winchester · .25-35 Winchester · .30-30 Winchester · .32 Win Special · .32-40 Winchester · .375 Winchester · .219 Zipper · .444 Marlin |
| Pistol — Small Bore | 10.38 | 22.0 | 135 | 5.7×28mm · .32 ACP · .32 H&R Magnum · .327 Federal Mag · .30 Carbine · .380 ACP · .38 Special · .357 Magnum · 7.62×25 Tokarev · .38 S&W · .38 Super · 9×18 Makarov · 9mm Luger / 9×19 |
| Pistol — Mid Bore | 11.21 | 22.0 | 126 | .40 S&W · .357 SIG · 10mm Auto |
| Pistol — Large Bore | 12.61 | 22.0 | 104 | .41 Remington Mag · .44 Special · .44 Remington Mag · .44-40 Winchester · .38-40 Winchester · .45 ACP · .45 GAP · .45 Colt |
| .22 LR / Rimfire | 6.30 | 14.0 | 360 | .22 Short · .22 Long · .22 Long Rifle · .22 CB / BB Cap · .17 Mach 2 |
| 12 Gauge | 21.20 | 50.0 | 48 | 12 ga 2½" · 12 ga 2¾" · 12 ga 3" · 12 ga 3½" |
All 119 cartridges, with exact entry diameters, clearances and overall lengths, are in the complete calibre fit chart and the Calibre Compatibility Guide. All dimensions in millimetres; bore diameter is the key fit dimension.
Choosing A Pistol Tray
One bore can't be snug across the whole handgun range — a .45 ACP case head is 12.09 mm and a .38 Special is 9.63. So the pistol tray comes in three bores, and you pick by case head, not by what the pistol is chambered in.
- Small Bore — the volume tray. 9mm, .38 Special and .357 Magnum all live here, 135 rounds to a tray.
- Mid Bore — the .40 family on its own, sized tight at 0.22 mm a side.
- Large Bore — .45 and .44. Will also take the .40 family if you'd rather run one tray.
Turn It Over And Nothing Moves
Every tray is dimensioned against the internal height of the Tactix case so a round can't lift far enough to clear its pocket.
Fit Notes
- ENTERS is the widest part of the cartridge that actually goes into the pocket — the rim, belt or case head, depending on how the tray holds the round: the rim on the lever tray, the case head on the pistol trays, and the rim, belt or head on the rifle trays.
- Trays are universal within each family. Cartridge dimensions vary between manufacturers, and printing tolerance and ammunition variation mean a small margin is normal — verify yours before ordering.
Not Covered By The Tray System
- .17 HMR, .22 WMR, .22 WRF and .17 WSM — case head Ø6.15, larger than the .22 LR pocket. Use the Sleeve Case range, cut to calibre.
- .25 ACP — clears the bore, but at 23 mm overall it is too short for the 22 mm pistol sleeve to hold when the case is inverted.
- .454 Casull, .460 S&W and .500 S&W — too tall to stand on the pistol riser under a 95 mm lid. They run in the Magnum and Big Bore trays instead.
- .44 Magnum and .44 Special in the lever tray — the rim passes the collar, but at roughly 41 mm overall they are too short for a 36 mm collar to hold when inverted. Use Pistol — Large Bore.
- .45-70, .405 Winchester, .450 Marlin and .348 Winchester in the lever tray — rims and belts wider than the Ø13.58 collar. .45-70 and .348 Win go in Big Bore; .405 Win and .450 Marlin in Magnum.
- Anything longer than 95 mm loaded — the internal height of the case. The lid will not close.
Don't see your calibre listed? Custom tray configurations are available on request — email forwardpointindustries@gmail.com with your calibre and we'll confirm fit.
Important Information
- Already own the Tactix case? The tray insert is available separately — see the Universal Tray Insert System.
- Do not leave the product inside vehicles or environments where temperatures may exceed 60°C.
- Finished fit may vary slightly due to printing tolerances and ammunition variation.
- Ammunition shown in photographs is for display only and is not included.
Designed & manufactured in Australia · Built for performance. Made to last. · Forward. Always.
Check your calibre before you order.
Match your cartridge to the right tray family, bore size and insert in the compatibility guide.
